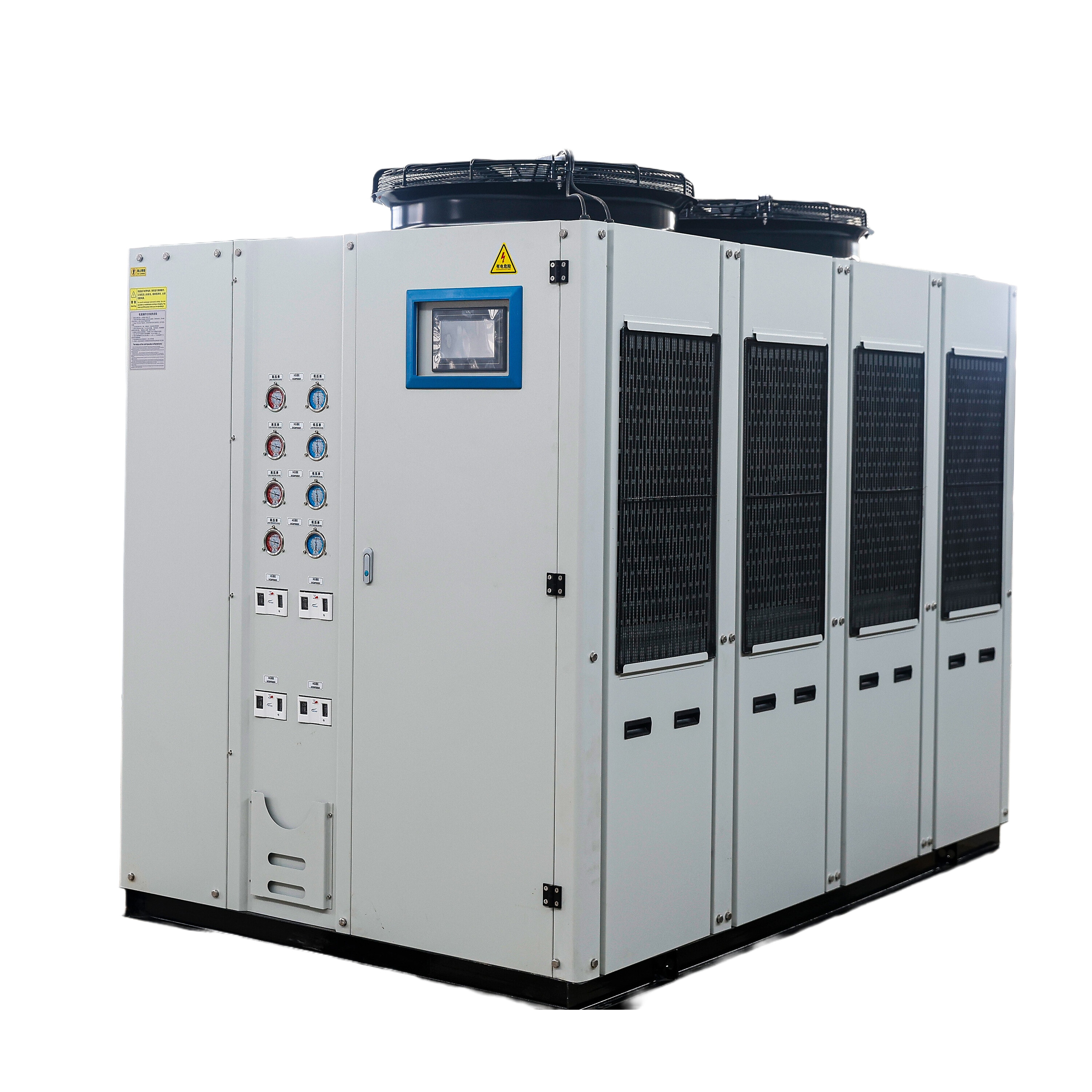

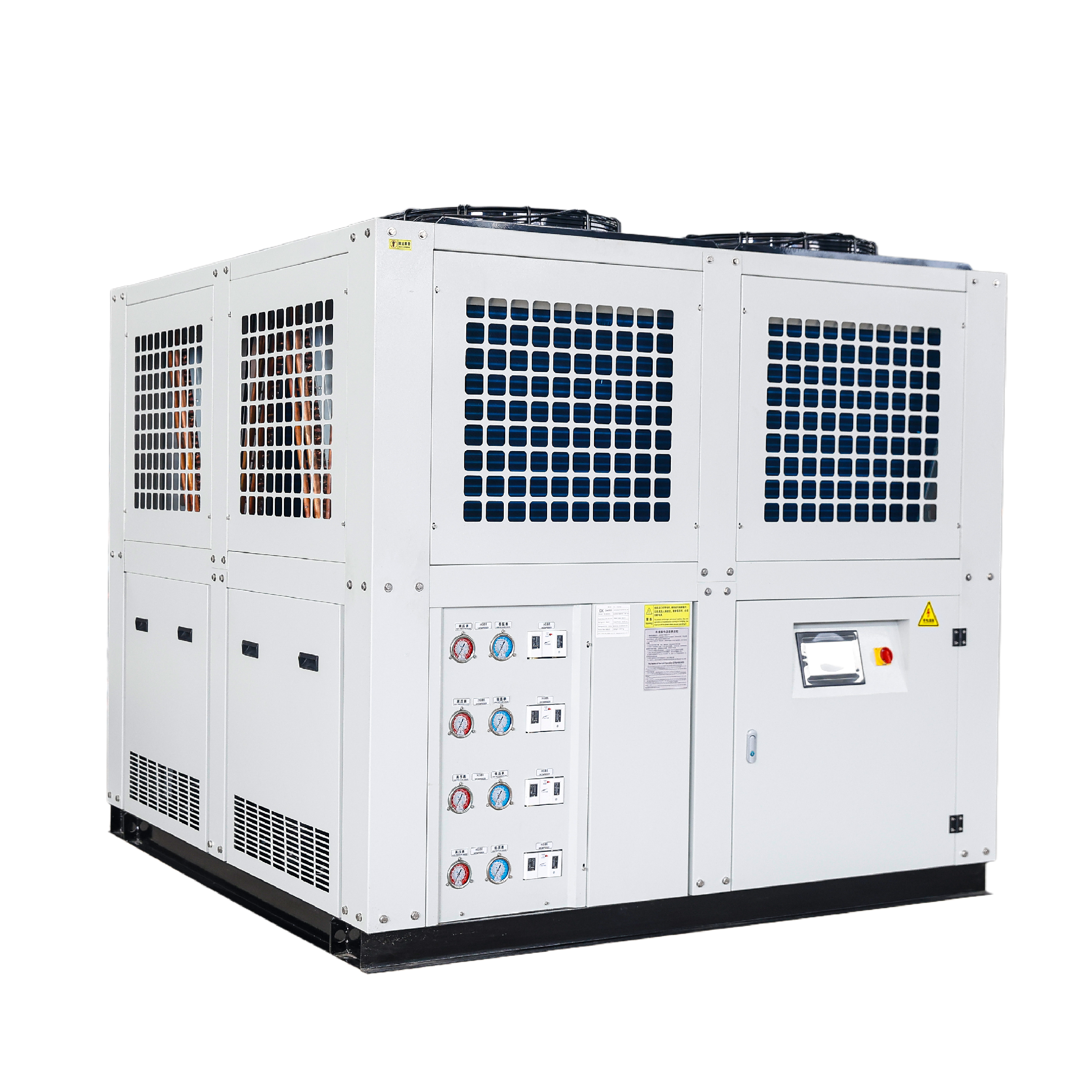

Glycol Water Chiller For Brewery

DARKO Glycol Chillers deliver reliable temperature control from 0°C to -15°C (-5°C/-10°C/-10°C models available), engineered for critical cooling applications across multiple industries. Our industrial-grade chillers ensure process stability and energy efficiency for temperature-sensitive operations.

Email

Inquiry Now

Description

Technical Parameters

Detail Images

Precision Glycol Chillers For Brewing,Beverage,Dairy Pharmaceutical Manufacturing

Glycol Chiller Features:

✔ Precise Temperature Range: 0°C, -5°C, -10°C and -15°C chilled glycol output
✔ Multi-Industry Compatibility:

Biofermentation & Pharmaceutical Manufacturing

Beverage Production (Beer, Juice, Soft Drinks)

Dairy & Milk Processing

Winemaking & Brewery Operations

Food Processing & Preservation
✔ Energy-efficient design reduces operational costs
✔ Corrosion-resistant components for extended lifespan
✔ Intelligent temperature control (±0.5°C accuracy)

Why Choose Our Glycol Chiller Systems?

Our chillers are specifically designed for process cooling applications requiring sub-zero temperatures. The non-freezing glycol solution prevents ice formation while maintaining consistent cooling performance, making it ideal for:

• Fermentation tank temperature control
• Product line rapid cooling
• Batch process thermal management

• Equipment heat recovery systems

Technical Specifications:

Cooling Capacity: 5kW to 1000 kW
Flow Rate: 15 L/min to 4000 L/min
Refrigerant: Eco-friendly R407C,R404a,R507,R134A,R410A
Custom configurations available
Certifications: ISO 9001, CE
Evaporator : High Efficiency Shell and tube, or tank with coil
Compressor: Energy-Efficient Hermetic Scroll,No need maintenance
Completely protection system for the whole air cooled chiller

Industry-Proven Performance

Trusted by food processing plants, breweries, and pharmaceutical facilities worldwide, our glycol chilling systems meet strict hygiene standards with:
• Stainless steel pump, pipe system
• Intelligent remote control
• Stainless steel heat exchangers

Optimize your production line with precise temperature control - [Contact Us] today for a free cooling system consultation!

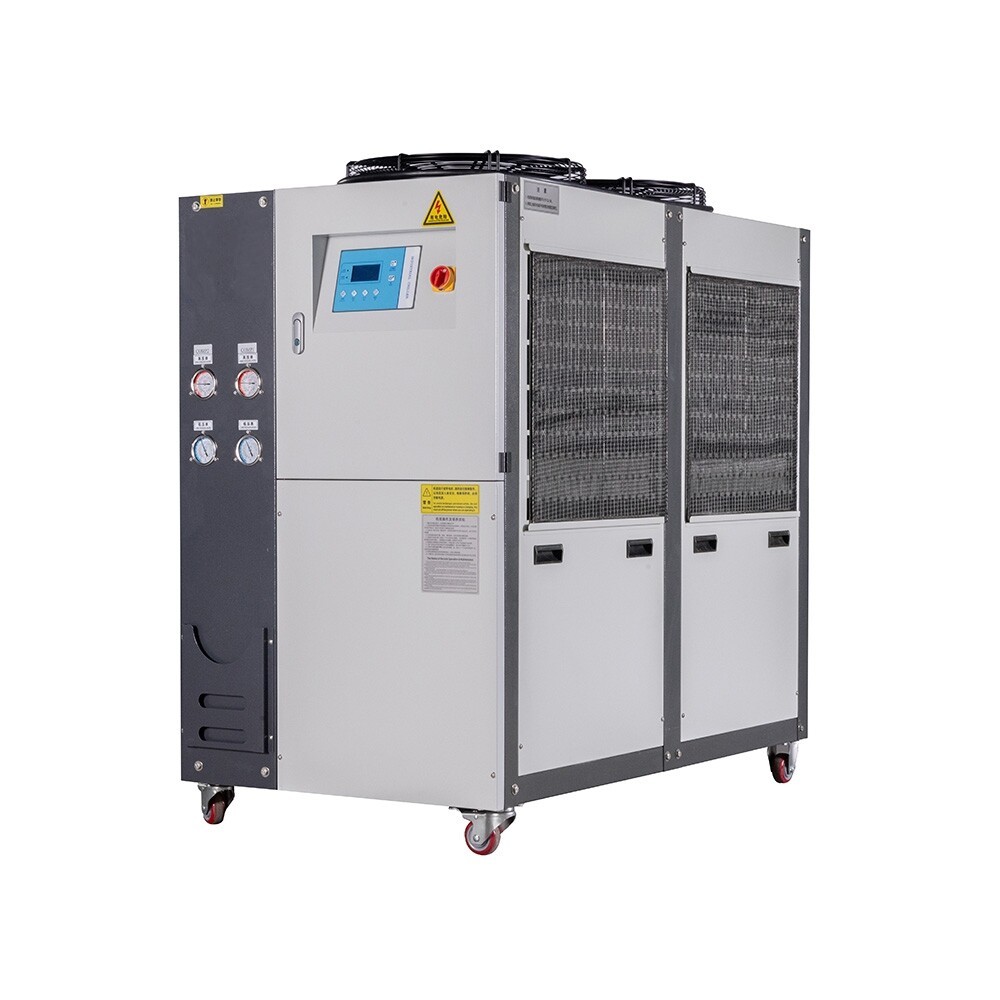

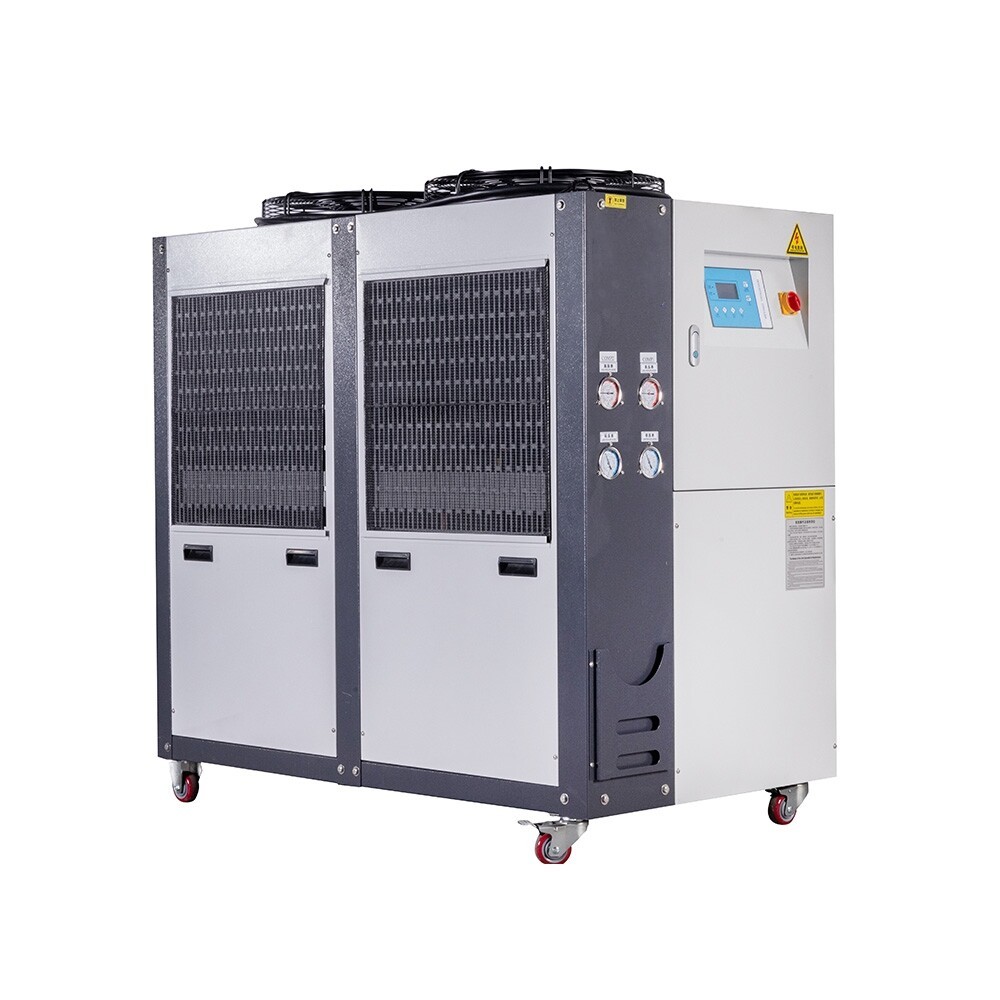

Portable Air Cooled Glycol Chiller

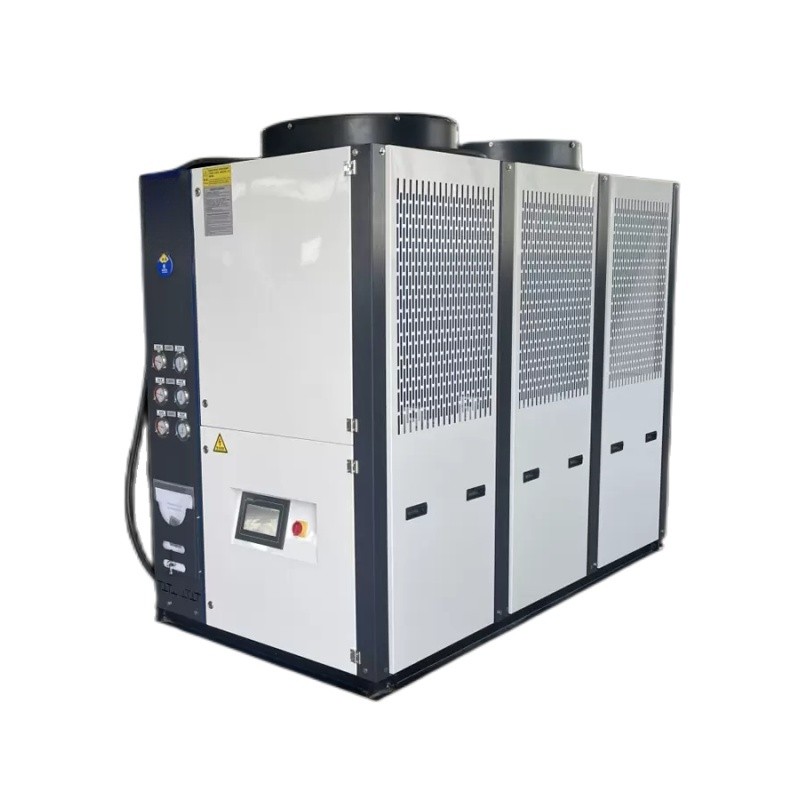

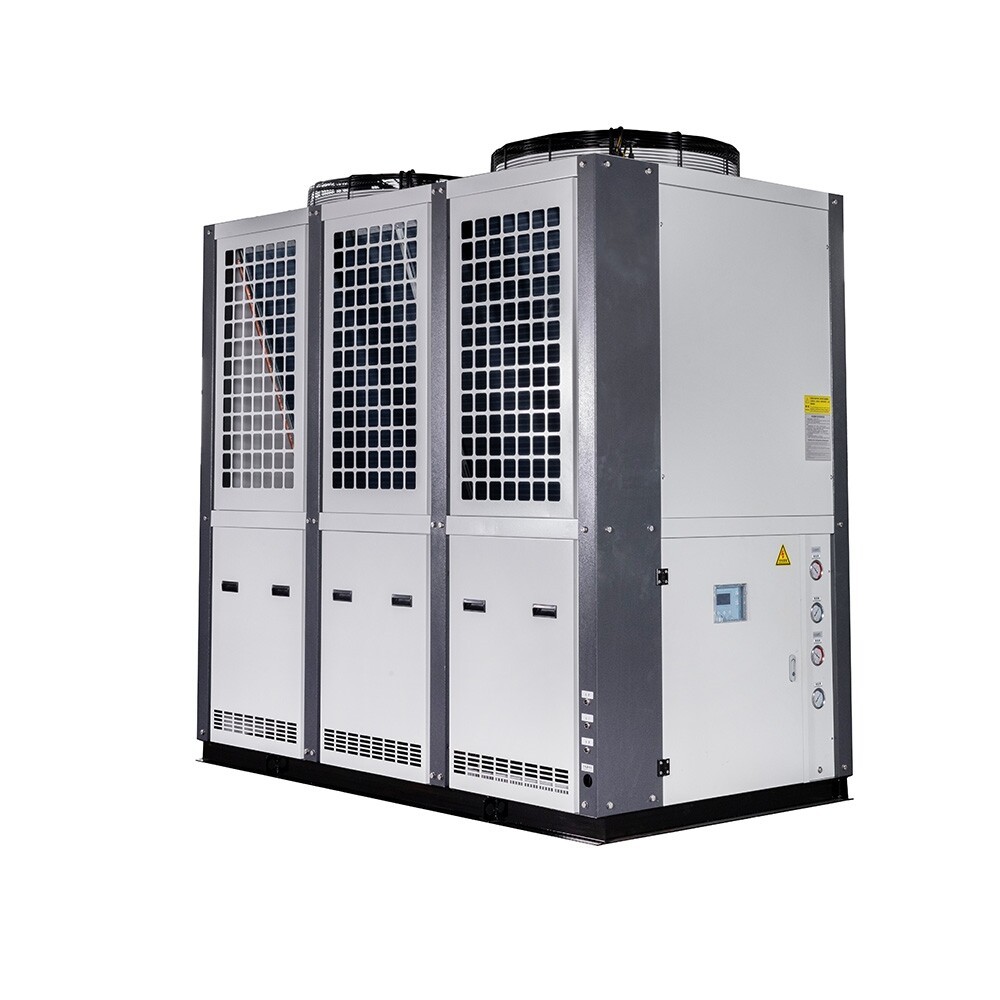

40HP Industrial Glycol Chiller

Model		DK-3AL	TDK-5AL	DK-6AL	DK-8AL(D)	DK-10AL(D)	DK-12AL(D)
Cooling capacity	At 0℃ Outlet (Kw)	6.8	10.5	12.2	16.2	22.8	24.8
Cooling capacity	At -5℃ Outlet (Kw)	5.7	8.9	10.3	13.8	19.3	21.0
Power	Kw	3.45	5.45	6.31	8.22	10.54	12.33
Power Supply		3PH-380V-50Hz
Refrigerant	Type	R22/R407C/R404a
Refrigerant	Control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll type
Compressor	Power(Kw)	2.84	4.36	5.2	3.5*2	4.4*2	5.2*2
Evapoirator	Type	SS Tank with coil or Shell and tube Or Plate Heat Exchanger
	At 0℃ OutletWater Flow(m3/h)	1.29	1.99	2.31	3.07	4.32	4.70
	At -5℃ OutletWater Flow(m3/h)	1.17	1.83	2.12	2.84	3.97	4.32
	Capacity(L)	50	70	70	120	200	200
	Inlet/Outlet	DN20	DN20	DN32	DN32	DN32	DN32
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
Condenser	Fan Power(Kw)	0.25	0.52	0.52	0.24*2	0.52*2	0.52*2
Pump	Type	Centrigual water pump
	Power(Kw)	0.37	0.55	0.55	0.55	0.55	0.55
	Lift(m)	24	25	24	20	20	20
Protection System		Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L (mm)	700	900	900	950	1560	1560
	W (mm)	550	850	850	900	850	850
	H (mm)	1000	1800	1800	1900	1500	1500
Weight	Kg	150	200	230	310	450	500

Model		DK-15AL(D)	TC-20C(D)	DL-25AL(D)	DK-30AL(T)	DK-40AL(F)	DK-50AL(F)
Cooling capacity	At 0℃ Outlet (Kw)	33.4	44.2	50.5	66.9	87.7	110.6
Cooling capacity	At -5℃ Outlet (Kw)	28.4 a	37.6	43	56.8	74.5	94
Power	Kw	15.84	20.51	23.52	31.81	40.18	47.92
Power Supply		3PH-380V-50Hz
Refrigerant	Type	R22/R407C/404a
Refrigerant	Control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll type
Compressor	Power(Kw)	6*2	8.7*2	10.2*2	8.7*3	8.7*4	10.2*4
Evapoirator	Type	SS Tank with coil or Shell and tube Or Plate Heat Exchanger
	At 0℃ OutletWater Flow(m3/h)	6.33	8.37	9.57	12.68	16.62	20.96
	At -5℃ OutletWater Flow(m3/h)	5.84	7.73	8.85	11.68	15.33	19.34
	Capacity(L)	270	350	350	450	580	580
	Inlet/Outlet	DN40	DN40	DN40	DN65	DN65	DN80
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
Condenser	Fan Power(Kw)	0.55*2	0.75*2	0.75*2	0.75*2	1.5*2	0.75*4
Pump	Type	Centrigual water pump
	Power(Kw)	1.5	1.5	1.5	2.2	2.2	2.2
	Lift(m)	20	20	20	21	20	19
Protection System		Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L (mm)	1800	2100	2100	2200	2500	2000
	W (mm)	1000	1000	1000	1160	1460	2000
	H (mm)	1600	1700	1700	1900	2000	1750
Weight	Kg	750	850	900	1150	1350	1600
Note 1.Nominal cooling capacity conditions:chilled water in 5/0℃,out 0/-5℃;cooling water in 30℃,out35℃ 2. .Specifications are subject to change without notice for futher improvement.

Water Chiller Control System

DARKO has developed a highly intelligent PLC and PC-level computer control system, which can be used for remote monitoring and control. Simple operation, connect with power supply directly, with lower failure, and high safety factor, easy installation. User can set the parameter as real working need, intuitive and reliable; SIEMENS PLC is workable.

LCD or Touch Type Panel

Schneider Brand Electric Components

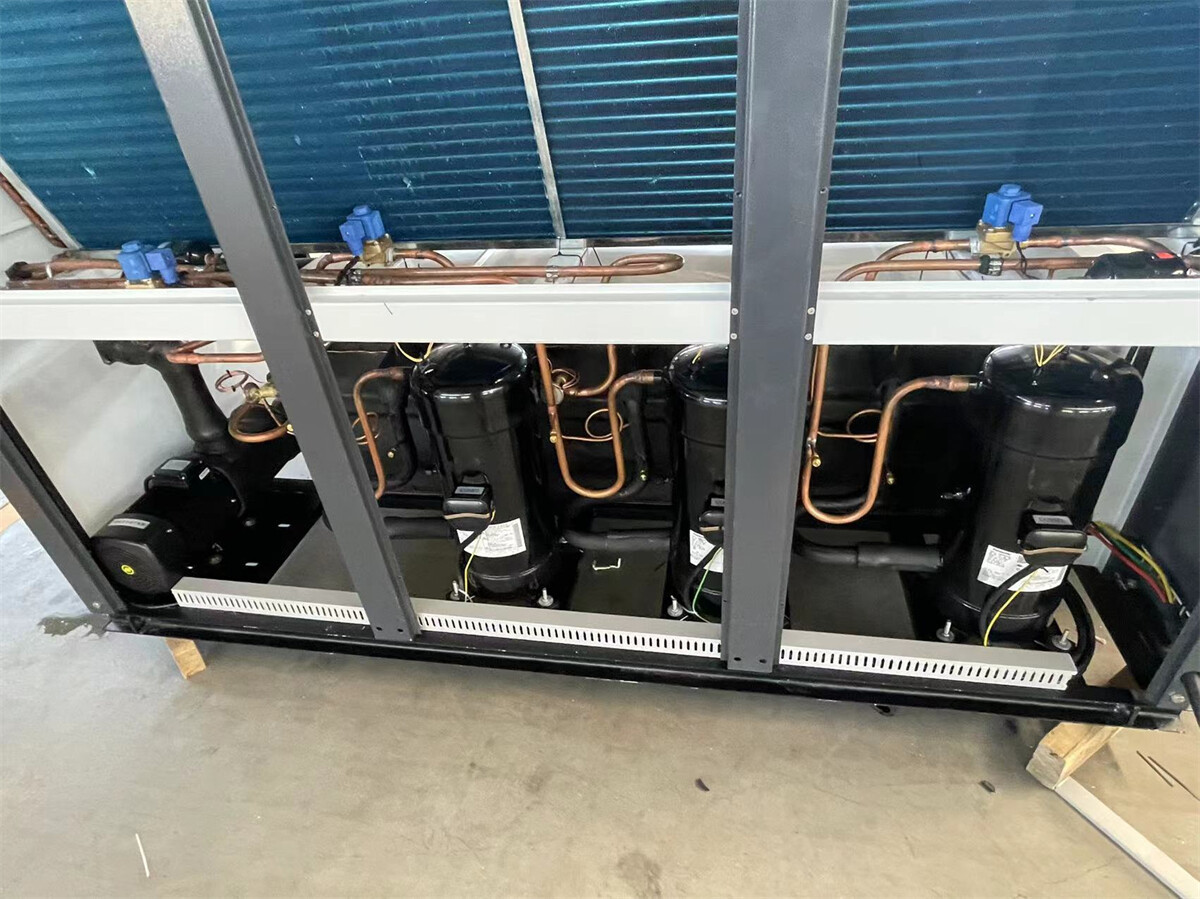

Industrial Water Chiller Compressor

It adopt the world famous brand hermetic scroll type compressor, which can saving 20-30% energy than the reciprocating compressor. It's running more stably, reliably, with high efficiency, fewer failures, less vibration, lower noise and easy maintenance. The compressors can automatically running alternately according to the load change, to balance the running speed of each compressor, and greatly extend the service life of the chiller.

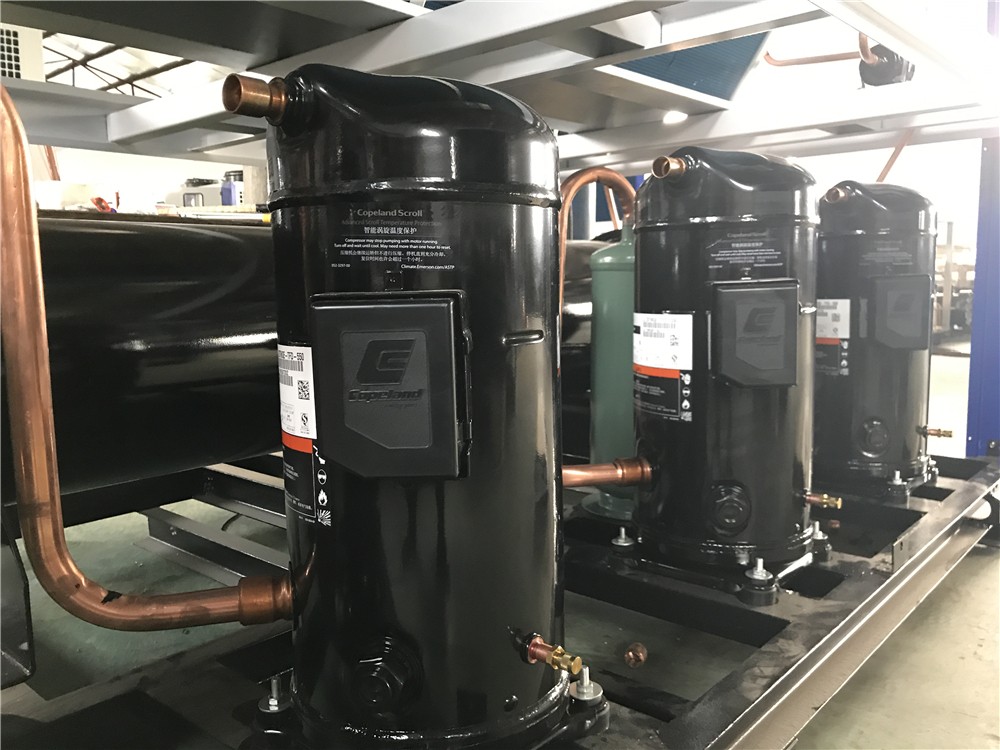

Emerson Copeland Scroll Compressor

Japan Panasonic Scroll Compressor

Heat Exchanger -Evaporator

(1). Tank with coil: If customer will connect with a closed water loop;

(2). Shell and tube: If customer will connect with a open water loop;

(3). Plate Heat Exchanger: It can connect with glycol tank, or extra tank directly, same operate with shell and tube;

(4). It adopts internal and external threaded tubes, the inner surface of the copper tube is threaded and surface is smooth, the cooling efficiency is higher. The outside of the evaporator is insulated with 25mm thick PE insulation board, no condensation, and small loss of cooling capacity.

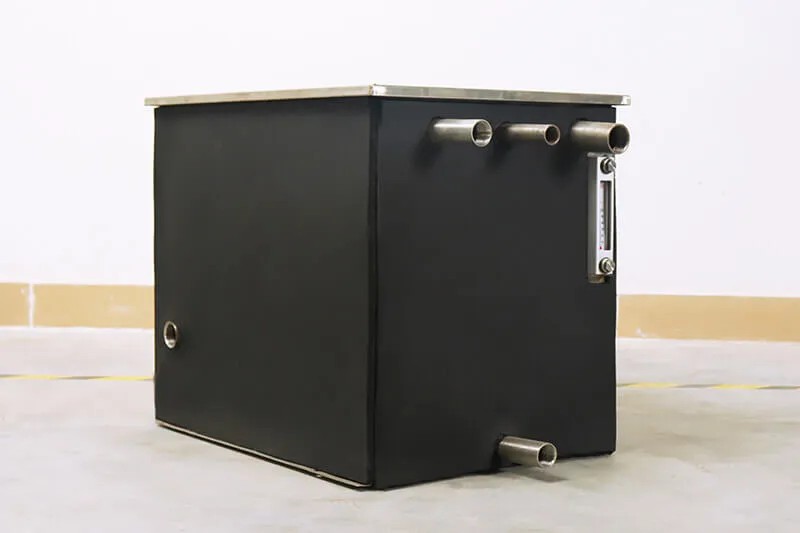

Tank With Coil

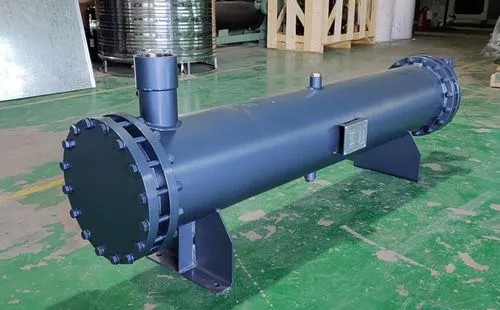

Shell And Tube

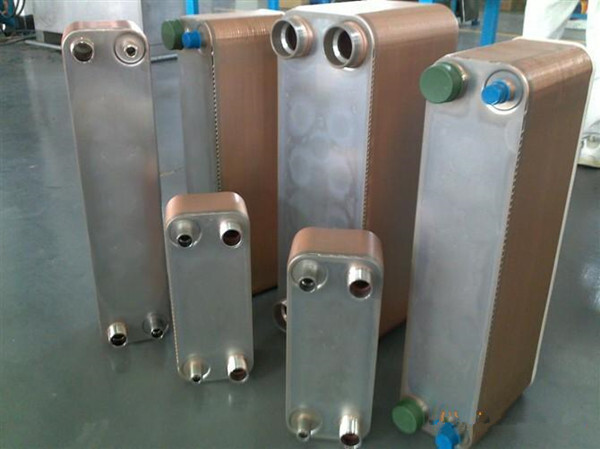

Plate Heat Exchanger

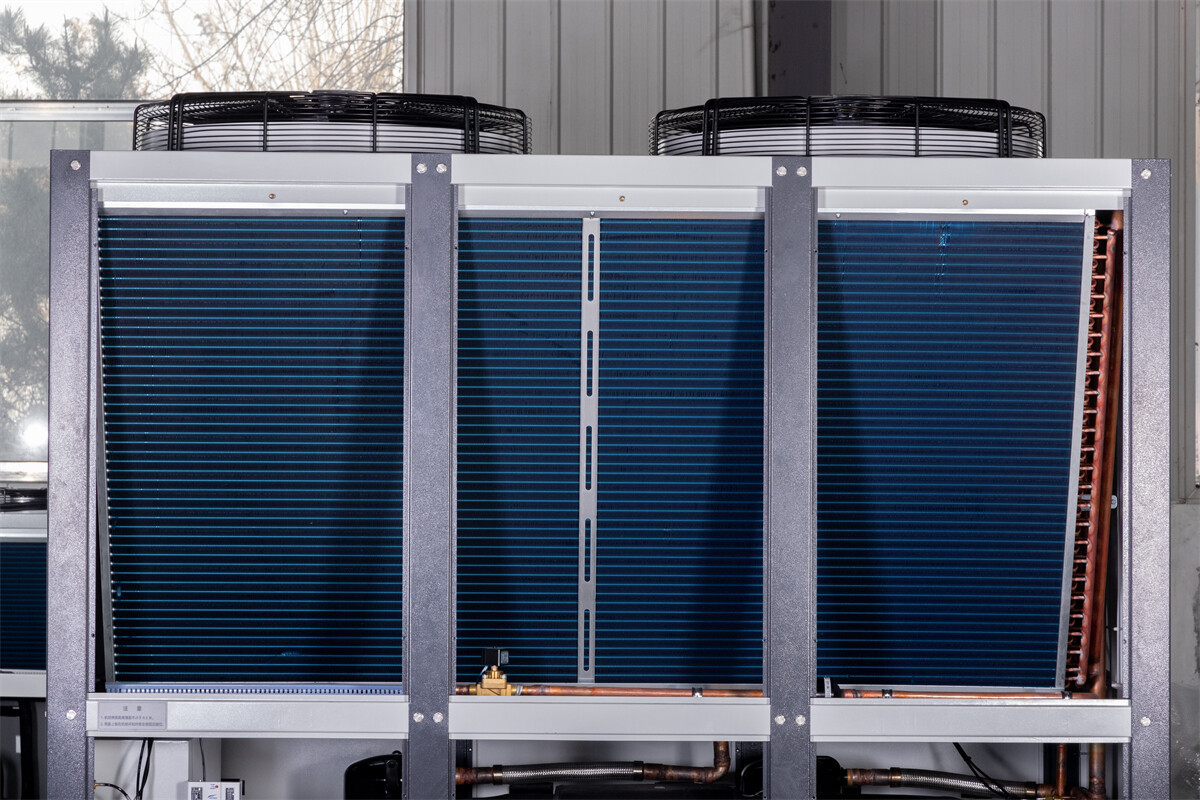

Condenser

Equipped with high-efficiency transverse slit fins and internal threaded copper tubes, with high heat exchange efficiency and good stability.

High efficiency hydrophilic aluminum foll finned type

Internal Water Pump

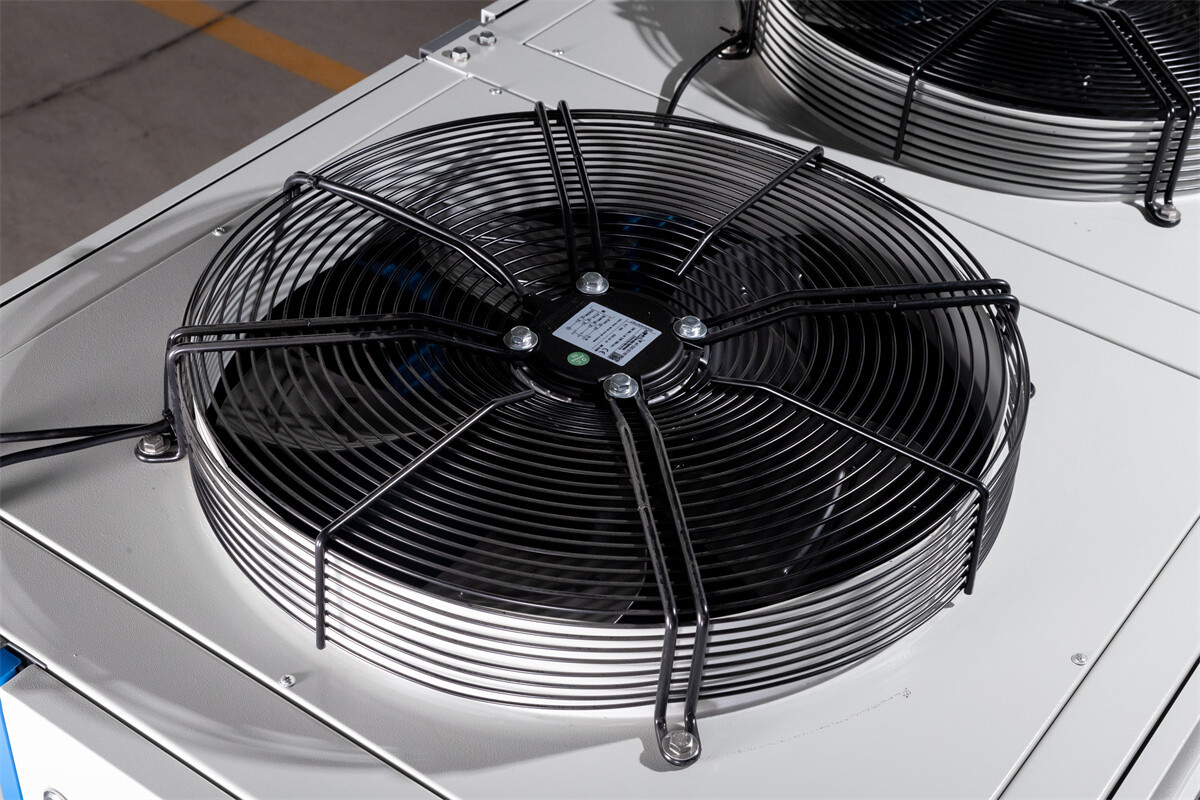

PowerFul Fan

DARKO Industrial Glycol Water Chiller with best price, widely application:

Brewery, winery, fermentation workable for -5C chiller; Or lower outlet such as -10C, -15C; you can send me message to get the detailed specification.
